Submersible Borehole Pumps

Flow:9m3/h-2500m3/h
Lift:12m-600m
Caliber:φ175-φ800mm
Power:7.5kw-410kw
Temperature:≤120℃
Qualitycertificate:One year warranty and lifelong maintenance

Skype : dragonpumps dragonpumps
E-Mail : marketing02@apkpump.com
Whatsapp/Wechat : 0086-17537187726
Get Quotation    Leave Message



Submersible borehole pumps are water intake equipment that we use frequently in projects such as drinking water.

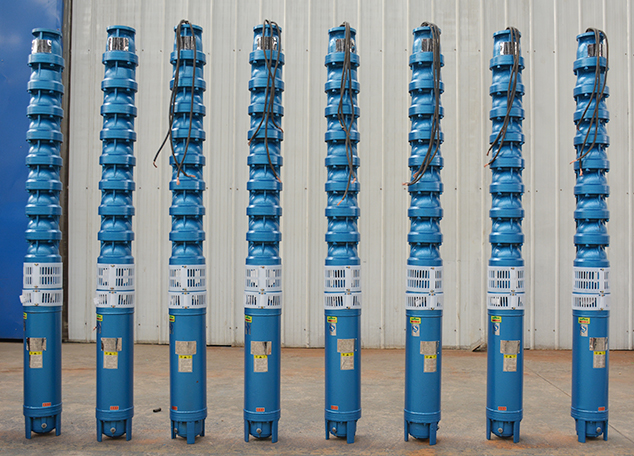

submersible-borehole-pumps(1)

 Submersible borehole pump parameters:

(cast iron or SS304/SS316/SS316L/duplex stainless/SS904L and 380v/440v/480v/600v/660v. If you would like to know more, please kindly contact us)

Diameter

Model Power  Flow range Head range
Inch (") QJ type kw hp m3/h m
 8" 200QJ15-81/6  7.5  10  13-17  68-92
 8" 200QJ20-148/11  15  20  18-22  126-170
 8" 200QJ20-175/13  18.5  25  18-22  150-210
 8" 200QJ20-202/15  22  30  18-22  172-232
 8" 200QJ20-243/18  25  35  18-22  206-280
 8" 200QJ20-283/21  30  40  18-22  240-325
 8" 200QJ20-338/25  37  50  18-22  287-388
 8" 200QJ20-405/30  45  60  18-22  345-465
 8" 200QJ25-56/4  7.5  10  23-27  45-67
 8" 200QJ25-70/5  9.2  13  23-27  56-84
 8" 200QJ25-98/7  11  15  23-27  84-112
 8" 200QJ25-126/9  15  20  23-27  100-145
 8" 200QJ25-154/11  18.5  25  23-27  138-184
 8" 200QJ25-182/13  22  30  23-27  150-210
 8" 200QJ25-224/16  30  40  23-27  190-258
 8" 200QJ25-294/21  37  50  23-27  250-340
 8" 200QJ32-128/8  22  30  29-35  106-150
 8" 200QJ50-65/5  15  25  46-54  52-78
 8" 200QJ63-126/9  37  50  58-68  100-147
 8" 200QJ100-90/6  45  60  80-120  88-92
 10" 250QJ50-140/7  30  40  46-54  119-161
 10" 250QJ50-340/17  75  100  46-54  315-375
 10" 250QJ80-220/11  90  120  74-86  190-250
 10" 250QJ100-216/12  100  135  80-120  190-252
 10" 250QJ125-192/12  110  150  113-134  163-220
 10" 250QJ140-180/12  125  170  130-145  156-205
 12" 300QJ200-40/2  37  50  186-214  35-45
 12" 300QJ300-80/4  110  150  279-321  68-92
 12" 300QJ400-120/3  220  300  368-432  117-123
 12" 300QJ500-60/4 140   190  460-540  57-63
 14" 350QJ250-25/1  30  40  233-267  22-28
 14" 350QJ320-120/4  185  250  305-335  115-125
 16" 400QJ500-40/1  90  120  460-540   38-42
 16" 400QJ500-20/1  45  60  460-540   18-22
 18" 450QJ1000-16/1  90  120  900-1200   12-20
 20" 500QJ640-84/3  260  350   600-680   82-86
 22" 550QJ1200-18/1  110  150  1100-1400    15-22
 24" 600QJ800-50/2  220  300  750-850  48-52
 24" 600QJ1000-60/3  300  400  900-1200   58-62

 Submersible borehole pump price:



Borehole submersible pump prices are affected by many factors, such as brand, model, quality and so on. The higher the quality, the higher the submersible pump price. Compared with other submersible borehole pump manufacturers. The APK uses cost-effective materials to precision cast submersible pumps, so our submersible pumps are competitively priced and worth buying.


Second, different submersible pump materials mean different prices. There are two qualities to choose from: one is cast iron and the other is stainless steel 304/316/316/904L. The customer purchases the submersible pump according to his actual industrial and mining.

 submersible-seawater-lifting-pump







  Submersible borehole pumps user case:







Water wells are common application environments for submersible borehole pumps, but some pump types cannot be used under this industry because of factors such as well diameter and well depth. The APK submersible tube well pump can meet different well diameters and submersible underwater work. It can also be used in seawater submersible lifting , mine drainage , agricultural irrigation, landscape fountains and other applications. Through such production cases, we can find that we constantly improve the submersible pump borehole, constantly overcome the mining problems, and adapt the submersible borehole pump to you and the quality of the products. The APK deep well submersible pump has been improved by many years of project cases, and the submersible pump is already in a mature stage, and will continue to improve in the future to meet different industrial and mining needs.

borehole-pump-user-case







Submersible borehole pump delivery packing:





borehole-pump-packing







Submersible borehole pump manfacturer:









1. Our factory:





In 1986, Mr. Huang founded the Shenlong Pump Industry Factory in Zhengzhou, constantly growing his team, learning the knowledge of submersible pumps, and building his own pump export brand: APK. Submersible pump as the export brand of APK pump manufacturer We attach great importance to the quality and efficiency of submersible pumps.



 submersible-borehole-pumps-factory



2. Certification:



Our QJ submersibe pump, QJR hot water submersible pump, QK mine submersible pump, QS(P) submersible pump, QS(Z) axial type submersible pump and other series of pumps all passed CE, ISO9001, BV, SGS, TUV, SASO and other authoritative institutions Certification.

 submersible-pump-certificate



3. Our partner:



 submersible-borehole-pump-customer



4. Attend exhibition:



 pumps-exhibitions
